1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Chứng nhận
TRUNG QUỐC SHANGHAI SUNNY ELEVATOR CO.,LTD Chứng chỉ
TRUNG QUỐC SHANGHAI SUNNY ELEVATOR CO.,LTD Chứng chỉ
Năm mới đến, chúc công ty ngày càng mở rộng quy mô, phát triển kinh doanh, phát triển kinh doanh và mở rộng nguồn tài chính.

—— Melya

Nhấn mạnh vào Quản lý Chất lượng Sản phẩm, Xây dựng Cơ chế Chất lượng Hiệu quả Dài hạn.

—— Yuilly

Tôi trò chuyện trực tuyến bây giờ

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

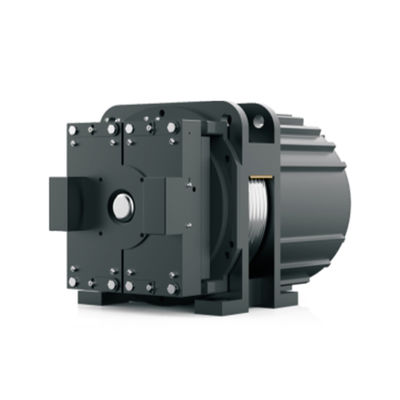

Hình ảnh lớn :  1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: SUNNY
Chứng nhận: CE
Số mô hình: SN-GETM2.5DS
Thanh toán:
Số lượng đặt hàng tối thiểu: 1
Giá bán: $500~1200
chi tiết đóng gói: Hộp gỗ
Thời gian giao hàng: 7 ~ 15 ngày
Điều khoản thanh toán: Công Đoàn Phương Tây, T/T, L/C, Paypal
Khả năng cung cấp: 5000 chiếc / tháng
Chi tiết sản phẩm
Tải trọng tĩnh: 3000kg INS.Class: 155(F)
phanh vol: DC110V Tính thường xuyên: 50 Hz
dây thừng: 2: 1 Tên sản phẩm: Động cơ không có thiết bị
Người mẫu: Động cơ không có thiết bị Kiểu: Động cơ không có thiết bị
Trọng tải: 630kg Tốc độ: 1,0~1,75m/giây
Làm nổi bật:

gearless elevator motor

,

1.0~1.75m/s elevator motor

,

elevator spare parts motor

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Product Parameters



Roping

Load

(kg)



Speed

(m/s)



Rated speed(r/min) Rated Torque(N.m) Motor Sheave Brake

Power

(kw)

Voltage(V) Current(A) Poles

Frequency

(Hz)

Diameter(mm) Rope(n) Groove pitch(mm) Current(A) Voltage(V)
2:1 630 1 119 329 4.1 340 10 20 19.8 320 ≤5x∅8 12 ≤2x1.5 DC 110V
1.5 179 337 6.3 15 29.8
1.75 209 337 7.4 17 34.8





1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 0

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 1

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 21.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 31.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 4
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
