Thông tin chi tiết sản phẩm:
Thanh toán:
|
Tên: | Cảm biến khe lên thang máy | Áp dụng: | Thiết bị thang máy |
---|---|---|---|
Loại hình kinh doanh: | nhà sản xuất | Vận tải: | Vận chuyển biển |
Tên sản phẩm: | Bộ phận thang máy | Điện áp: | 10...30VDC |
Người mẫu: | Cảm biến khe lên thang máy | Sản phẩm: | Cảm biến khe lên thang máy |
Đầu ra: | PNP hoặc NPN | Giới hạn nhiệt độ: | -20 ~+70 ° |

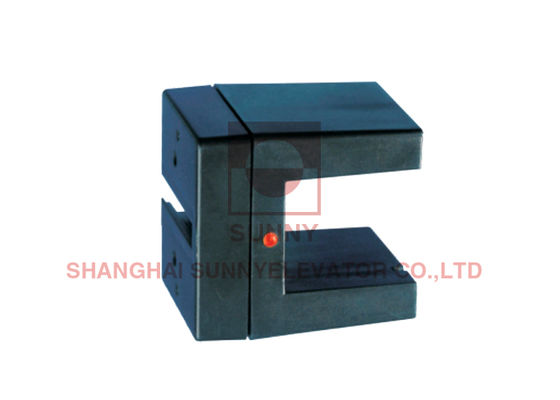

CE Certification Elevator Leveling Slot Sensor For Elevator Electrical Parts
Feature Description
High-speed response type
With a repeatability accuracy of up to 0.5mm, the positioning is more precise
Infrared light above 10000% is on standby, dust-proof, smoke-proof and steam-proof
It is equipped with built-in output short-circuit protection, surge protection and overload protection circuits
Multi-functional output (NPN/PNP/NO/NC
Protection grade IP65(IEC)
Model | ET126NS2P |
Power supply | 10...30VDC |
Riple | <10% |
Detected object | Φ2.0 Above metal objects |
Sensitivity adjustment | fixed |
Emission | Infrared(880nm) |
Output | PNP or NPN |
Max. Load Current | ≤200mA |
No Load Current | 15mA or Less |
Voltage Drop(Sensor On) | <2.5V |
Response Time | ≤1ms |
Short Circuit Protection | Yes |
Electric Protections | Yes |
Temperature Limits | -20 ~+70°℃ |
Storage temperature and humidity | -40 ~ +80℃ 95% RH |
Light Immunity | >100,000Lux |
Protection Degree | En60529 IP65 |
EMC | EN 12015, EN 12016 |
Certification | CE |
Connection Type | PVC Cable |
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
