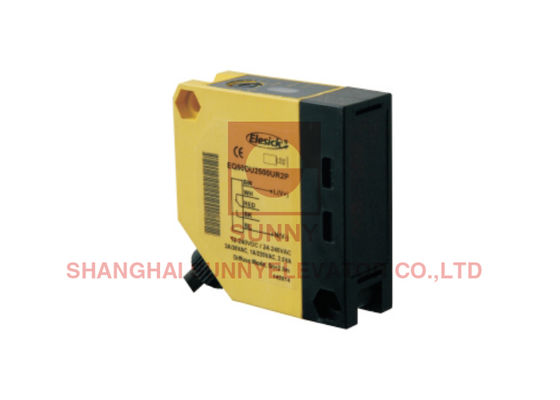

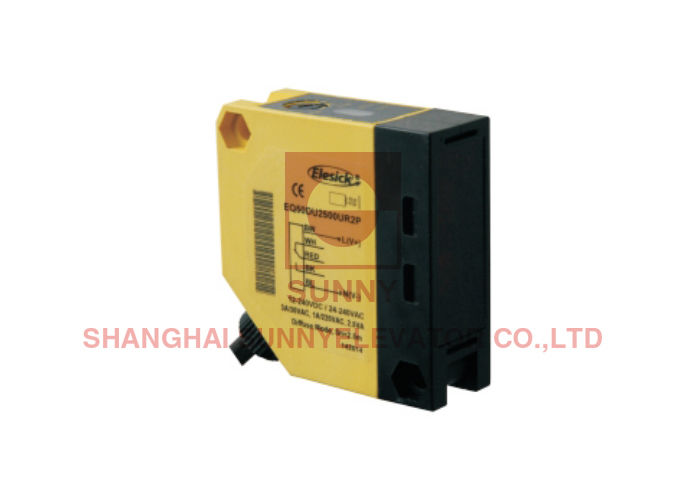

Escalator Entrance Detection Device Escalator Safety Entry Detector

Escalator Entrance Detection Device Escalator Safety Entry Detector

Hình ảnh lớn :  Escalator Entrance Detection Device Escalator Safety Entry Detector

Thông tin chi tiết sản phẩm:
Nguồn gốc: Trung Quốc
Hàng hiệu: SUNNY
Chứng nhận: CE,ISO9001
Số mô hình: EQ50DD2500DK2P
Thanh toán:
Số lượng đặt hàng tối thiểu: 10pcs
Giá bán: $7~10
chi tiết đóng gói: Gói xuất tiêu chuẩn
Thời gian giao hàng: 7 ~ 15 ngày
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây
Khả năng cung cấp: 1000 chiếc / tháng
Chi tiết sản phẩm
Tên: Thiết bị phát hiện lối vào thang cuốn Áp dụng: Thiết bị thang máy
Loại hình kinh doanh: nhà sản xuất Vận tải: Vận chuyển biển
Tên sản phẩm: Bộ phận thang máy Điện áp: 10...30VDC
Người mẫu: Thiết bị phát hiện lối vào thang cuốn Sản phẩm: Thiết bị phát hiện lối vào thang cuốn
Đầu ra: PNP hoặc NPN Giới hạn nhiệt độ: -20 ~+70 °



Escalator Entrance Detection Device Escalator Safety Entry Detector



Feature Description

Manufactured with a dedicated IC, this product offers stable performance. Built-in output short-circuit protection, surge protection, and overload protection circuits are also available. Multi-function programmable outputs (NPN/PNP/NO/NC) or relay outputs are available. Fast response time, long life, and high reliability are key features. IP65 (IEC) protection rating is also available.



Model EQ50DD2500DK2P EQ50UD2500UR2P
Power supply 10...30VDC 12-24VDC/24-240VAC
Riple <10%
Sensitivity adjustment VR
Emission Infrared(880nm)
Output PNP or NPN Relay SPDT
Output Characteristics NO or NC 3A/30V AC, 1A
Max. Load Current ≤200mA <2.5VA
No Load Current 30mA or Less
Voltage Drop(Sensor On) <2.5V -
Response Time ≤1ms
Short Circuit Protection Yes -
Electric Protections Yes -
Temperature Limits -20 ~+70°℃
Storage temperature and humidity -40 ~ +80℃ 95% RH
Light Immunity >100,000Lux
Protection Degree En60529 IP65
EMC EN 12015, EN 12016
Certification CE
Connection Type PVC Cable





Escalator Entrance Detection Device Escalator Safety Entry Detector 0



Escalator Entrance Detection Device Escalator Safety Entry Detector 1



Escalator Entrance Detection Device Escalator Safety Entry Detector 2

Escalator Entrance Detection Device Escalator Safety Entry Detector 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
